WGLRenderer Class Reference

Base class for rendering. More...

#include <WGLRenderer.hpp>

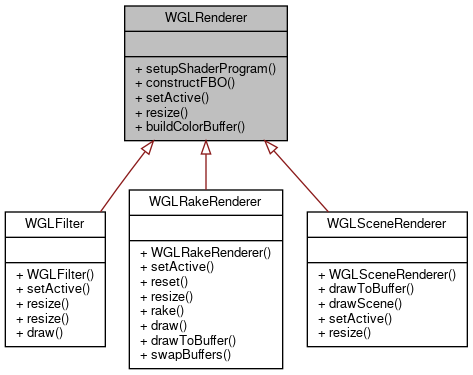

Inheritance diagram for WGLRenderer:

Collaboration diagram for WGLRenderer:

Public Member Functions
void	setupShaderProgram (std::string vert, std::string frag, GLint &shader)
	Create a shader program. More...
void	constructFBO (size_t x, bool stencil_depth, GLint interpolation, GLuint &fbo, GLuint &tex)
	Construct a FBO. More...
virtual void	setActive () const =0
	All Renderer objects need to be set active to set the needed WGL state. More...
virtual void	resize ()=0
	All Renderer objects should be resizeable. More...
void	buildColorBuffer (Palette const &p, std::vector< GLfloat > &v)
	Build a color buffer from a palette which may be send to GPU. More...

Detailed Description

Base class for rendering.

Provides some basic function like shader compilation, FBO creation and color packing.

Member Function Documentation

buildColorBuffer()

void WGLRenderer::buildColorBuffer ( Palette const &  p, std::vector< GLfloat > &  v  )

inline

Build a color buffer from a palette which may be send to GPU.

Parameters

p	A palette.
v	The color buffer to fill.

Here is the caller graph for this function:

constructFBO()

void WGLRenderer::constructFBO	(	size_t	x,
		bool	stencil_depth,
		GLint	interpolation,
		GLuint &	fbo,
		GLuint &	tex
	)

Construct a FBO.

Parameters

	x	Pixel resolution for the FBO.
	stencil_depth	Wether to generate a stencil/depth buffer.
	interpolation	used on texture sampling
[out]	fbo	FBO handle.
[out]	tex	Handle for the FBO draw attachement which can be used as texture.

Here is the caller graph for this function:

resize()

virtual void WGLRenderer::resize ( )

pure virtual

All Renderer objects should be resizeable.

Implemented in WGLSceneRenderer, WGLRakeRenderer, and WGLFilter.

setActive()

virtual void WGLRenderer::setActive ( ) const

pure virtual

All Renderer objects need to be set active to set the needed WGL state.

Implemented in WGLSceneRenderer, WGLRakeRenderer, and WGLFilter.

setupShaderProgram()

void WGLRenderer::setupShaderProgram	(	std::string	vert,
		std::string	frag,
		GLint &	shader
	)

Create a shader program.

This includes error checking and linking of a vertex shader and a fragment shader.

Parameters

vert	Vertex shader code.
frag	Fragment shader code.
shader	Shader program handle.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• include/WGLRenderer.hpp
• src/WGLRenderer.cpp
